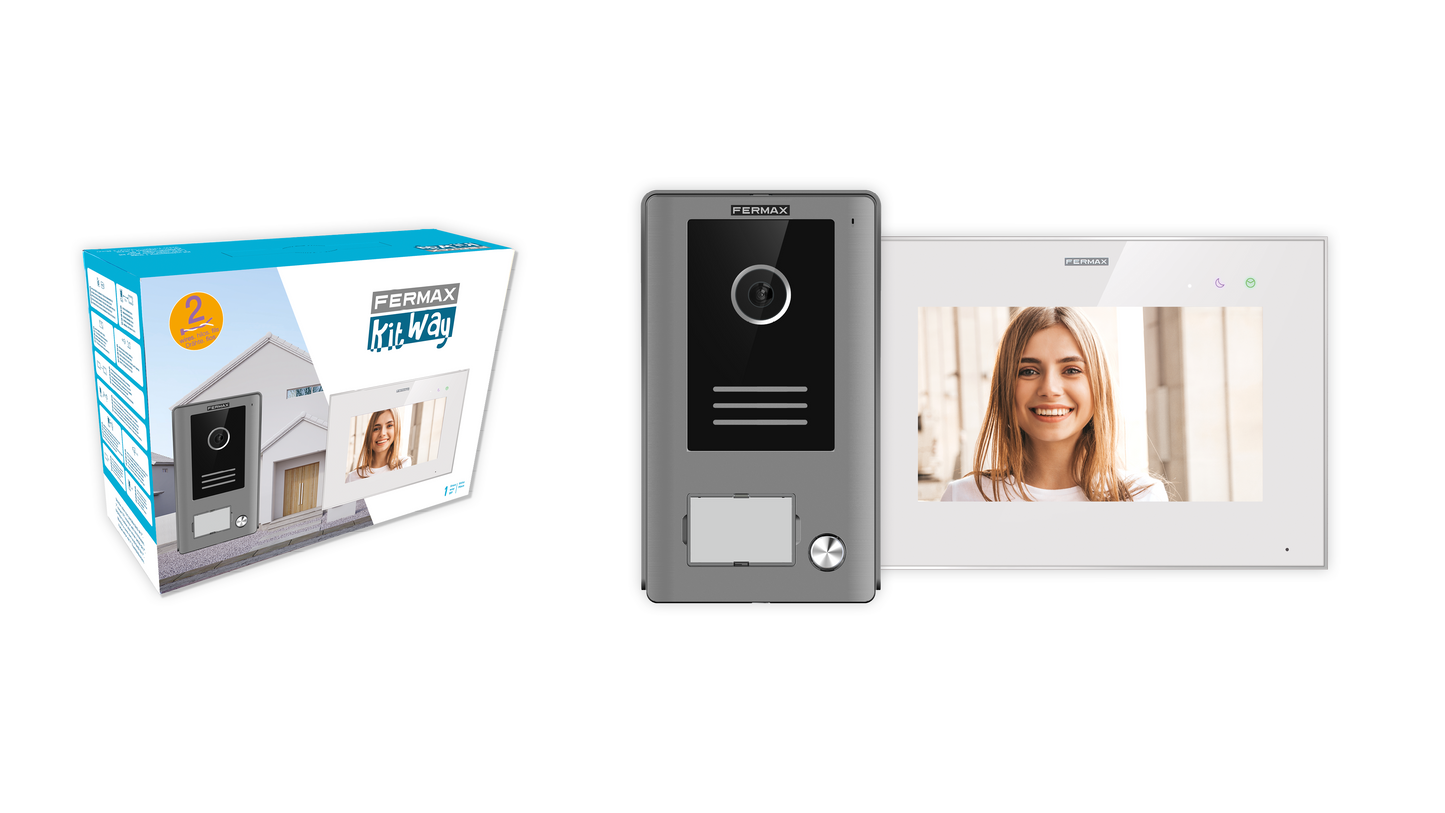

1521 7" 1/L VIDEO WAY KIT

Description

The VIDEO WAY KIT is an ideal video intercom system for homes . It includes a 7" touchscreen monitor , a WAY panel with a camera , and a DIN8 power supply . It supports expansions and additional cameras for greater functionality.

Includes:

• WAY 1/L plate (Ref. 1527) with visor and integrated camera.
• WAY 7" Monitor (Ref. 1525) with touch screen and hands-free.
• DIN8 26DC-2A power supply (Ref. 1440) for DIN rail mounting.

Extensions

• Housing: Up to 2 additional monitors (total 3) without extra power.
• Street plate: Up to 1 additional plate (total 2).
• Additional cameras: Up to 2 analog CCTV cameras can be added (1 per outdoor panel).

Features of the WAY Plate (Ref. 1527)

• Surface mount with rain visor included.
• Material: Zamak and aluminum.
• Door opening: Compatible with 12V DC electric door opener (250 mA max.).
• Relay for second door (garage): Configurable as NO/NC, timer (1-8 s).
• LED lighting: Card holder and call button with backlight activated by light sensor.
• Integrated camera: Viewing angle H=120º, V=90º. Color night vision with 6 white LEDs.
• Environmental resistance: IP44, IK07, temperature from -20ºC to +55ºC.

Features of the WAY 7" Monitor (Ref. 1525)

• Surface mount with wall connector.
• 7” touch screen (1024x600px, 16:9 format).
• Talk mode: Hands-free.
• Advanced Features:
• Capture photos and videos with Micro SD storage (not included).
• "Do not disturb" mode with immediate or scheduled activation.
• Street view (up to 2 plates and 2 cameras).
• Call history with date and time.
• 16 selectable ringtones.
• Internal intercom: Communication between monitors within the home.
• Compatibility: Supports one analog CCTV camera per board.
• Connections:
• Bus (B, B).
• Doorbell (GND, BELL).
• Micro SD slot (8-32 GB).
• Switch for home address setting.
• Environmental resistance: IP30, temperature from -10ºC to +45ºC.

Technical Specifications

• Power supply: 24Vdc NON-POLARIZED (direct from the bus).
• Dimensions:
• Plate: 94x164x21 mm (34 mm with visor).
• Monitor: 222x154x11.5 mm.
• Weight: 1.816 kg.
• Packaging dimensions: 21x29x11.5 cm.
• EAN 13: 8424299015217.
