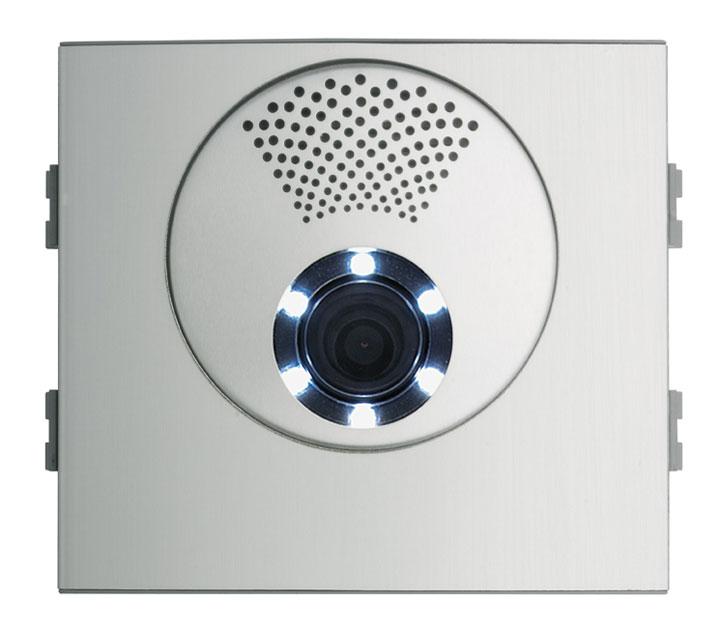

1622 FERMAX-LYNX SKYLINE VIDEO MODULE

Description

Lynx is the most advanced technological system for managing communication, security, and comfort in residential complexes. Its technology goes beyond simple TCP/IP, providing ideal solutions for system integrators and residents alike. Lynx connects the interior and exterior of the home, maintaining reliable and secure communication, and ensuring resident comfort with ease of installation and maximum robustness.

The point-to-point SIP architecture and Power over Ethernet (PoE) simplify installation and eliminate the need for central servers. With unlimited technical capacity, Lynx can manage a virtually unlimited number of monitors and unlimited distances within an installation.

Main Features

• Communication: Permanent and reliable connection between residents and service staff.
• Security: Video intercom system that guarantees privacy and protection.
• Comfort: Facilitates the customized installation of systems and automation according to the needs of each resident.
• Installation: Compatible with existing local area networks and structural cable.
• Power: 2W audio power, adjustable in both directions.

Technical Specifications

• Lynx amplifier power supply: 12 Vdc
• Vivo Monitors Power Supply: 12 Vdc or standard 802.3af PoE
• Consumption: Standby 190 mA, active audio 500 mA
• Audio power direction home-street: 2W
• Operating temperature: -10 to 60 ºC
• Module Measurements: Module W: 105.2 x 95 mm (width x height)
• Camera: 90º lens, 380 lines horizontal resolution, 0.5 lux sensitivity, night vision using white LEDs.
• Video: VGA resolution (640x480 px), 1/3” CMOS sensor, 270K effective pixels, 25 fps refresh rate.
• Viewing angle: 62º H, 48º V
• Weight: 0.353 kg
• Product dimensions when packaged: 13.5 x 10 x 6 cm
• EAN 13: 8424299016221
