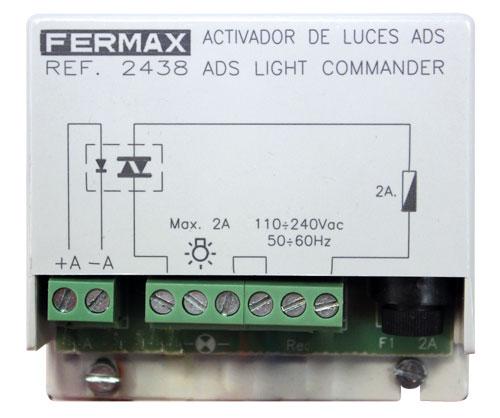

2438 VDS LIGHTS-BELL ACTIVATOR

Description

This device is designed for installations requiring high-powered call signals. It allows you to activate a doorbell, siren, or light by pressing the push button on the outdoor panel.

Small in size, it can be installed in electrical registers and standard 10x10 cm boxes, using adhesive strips or direct screwing.

VDS System

Wireless intercom and video intercom system with simplified installation for calls to each home. The call is transmitted using a digital code generated by the VDS amplifier.

• Installation in new construction with wiring: UTP CAT5 / 5 wires / 3 wires + coaxial (video).
• Compatible with buildings with up to 199 homes, 2 entrances and a concierge center.
• Maximum distance from the first access to the last dwelling: 200 m.
• Allows the conversion of an analog intercom to a video intercom by reusing existing wiring.
• Includes voice synthesizer with message: "door open, close after entering."
• Simple programming of home terminals from the street panel.
• Private communication.

Technical Specifications

• Dimensions: 62 x 70 x 20 mm
• Power supply: 18 Vdc
• Technology: VDS
• Weight: 0.071 kg
• Packaged product dimensions: 6.3 x 2.4 x 9 cm
• EAN 13: 8424299024387
