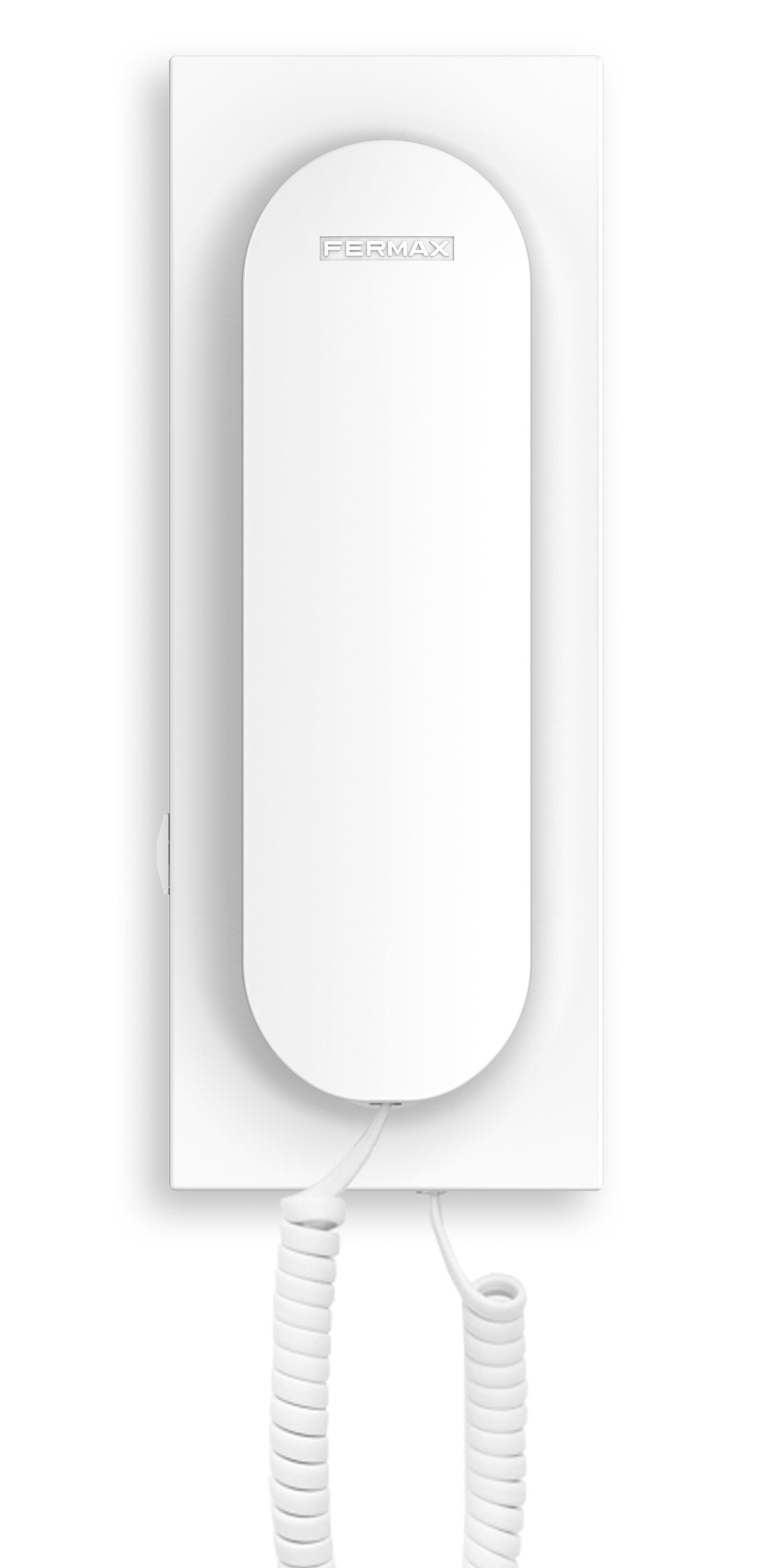

3444 VEO DUOX PLUS PHONE

Description

The VEO phone is an audio terminal designed to offer efficient communication and a modern design. Made of high-impact ABS plastic , it features a textured finish for easy cleaning and UV protection for improved sunlight resistance.

Its magnetic earpiece allows for precise hanging, preventing accidental drops and ensuring greater durability. Its minimalist and modern style makes it an elegant choice for any environment.

When receiving a call, the call begins when you pick up the handset and ends automatically after 90 seconds or when you hang up. To open the door, simply press the blue door release button .

Main Features

• DUOX PLUS System : Non-polarized 2-wire digital technology.
• Easy-to-fix wall installation .
• Surface mount and optional desktop stand ( ref. 3749 ).
• Earpiece with magnet for secure hanging.
• Version with inductive loop : Compatible with ref. 3443 .
• Color : Matte white.
• Conversation privacy guaranteed.
• Doorbell with a melody that is different from the plate.
• Connection for additional devices : Compatible with ref. 2040, ref. 2438, ref. 3267 .

Programming and Functions

• Address programming from the panel or concierge .
• Programming from the panel without entering the home.
• Call the concierge from the door opening button.
• Auto-ignition with the last call plate for 30 s.
• Up to 2 additional terminals with the same address (may require additional power supply).

Customizable Settings

• Melody selection : 5 configurable options depending on the call source (panels or concierge).
• Call volume regulation : 3-position switch.
• Do Not Disturb Function : 3-position switch with red visual signal.

Technical Specifications

• Dimensions : 214 x 82 x 43 mm.
• Weight : 0.317 kg.
• Packaged measurements : 25.7 x 8.5 x 5.3 cm.
• Response time : 30 s.
• Talk time : 90 s.
• Supply voltage : 18-24 Vdc.
• Maximum consumption : 3.5 W.
• Standby power consumption : 0.3 W.
• Temperature range : -5°C to +40°C.
• Humidity : 0% - 90%.
• Line adapter included : Yes (A, C, default position OFF).
• EAN 13 : 8424299034447.

The VEO phone is the perfect choice for modernizing home communications with a sophisticated design, simple installation, and advanced DUOX PLUS technology.
