34500 iLOFT CONNECT DUOX PLUS PHONE

Description

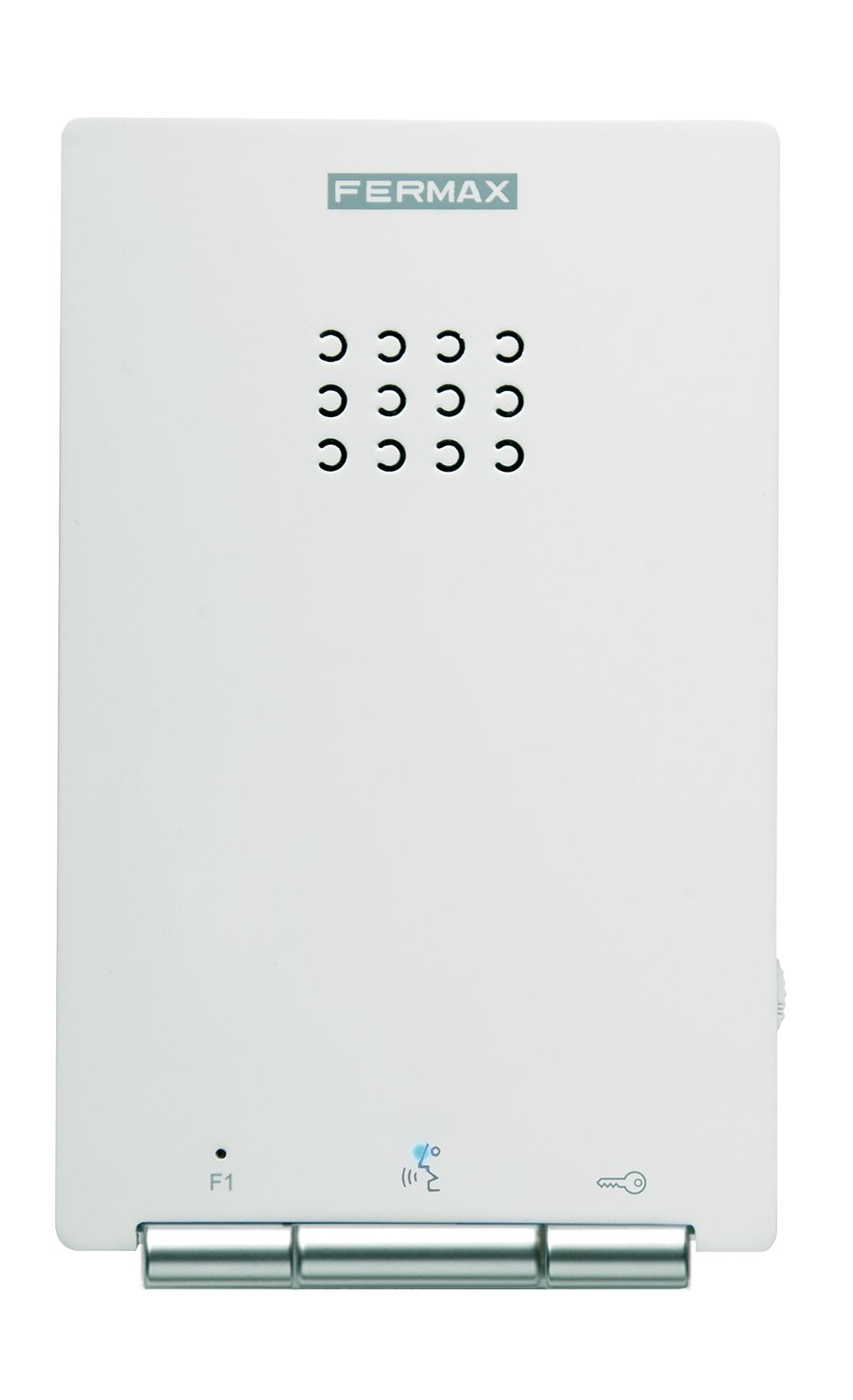

The iLOFT DUOX PLUS is a compact, ultra-thin door entry system designed for hands-free communication with your outdoor panel. Made of highly UV- resistant ABS plastic with an elegant matte finish for easy cleaning. Its minimalist and sophisticated design makes it an aesthetically pleasing and functional solution for any home or building.

Its intuitive wheel control allows you to easily adjust both call and talk volume. It also features advanced features that ensure an optimal user experience .

Designed for surface installation , the iLOFT DUOX PLUS is ideal for those looking for technology and design in a single device.

Note: For installations with a CONNECT panel , the use of the iLOFT CONNECT version is mandatory to activate audio call forwarding to the mobile (FLEXI CALL).

Main functions

• Hands-free mode with private communication and conversation secrecy.
• Call and conversation volume regulation using a sliding wheel.
• Do Not Disturb Mode with red LED indicator.
• Auto-on : allows you to start a conversation with the outdoor panel without the need for a prior call.
• Control buttons:
  • Activate/Deactivate audio with the outdoor panel.
  • Door release button and concierge call (if available).
  • Additional function button: stair light relay activation, second door or gate opening, panic call, among others.
• Selection of 5 ringtones.
• Automatic door opening function with green LED signaling.
• Connection for doorbell with call button in the home.
• Line adapter included (A, C, default position OFF).
• Do Not Disturb Mode with red LED signaling.

Technical Specifications

• Technology: DUOX PLUS (2-wire digital).
• Dimensions: 90 x 146.5 x 20 mm.
• Weight: 0.149 kg.
• Packaged product dimensions: 15 x 9.5 x 3.3 cm.
• Mounting: Surface.
• Maximum talk time: 90 seconds.
• Time to answer or open the door: 30 seconds.
• Consumption:
  • Standby: 0.4 W.
  • Maximum: 3.6 W.
• Supply voltage: 18-24 Vdc.
• Operating temperature: -5ºC to +40ºC.
• Connection terminals: Bin, Bin, Bout, Bout, -, A+, F1, T.
• EAN 13: 8424299345000.

The iLOFT DUOX PLUS is the best option for those seeking security and comfort in a single device, offering efficient communication and intuitive operation with a modern, minimalist design.
