40008 CITY S1 CP201 ​​DUOX PLUS PLATE

40008 CITY S1 CP201 ​​DUOX PLUS PLATE

€299,04 EUR
€299,04 EUR
Sale Sold out
💡 Precio mostrado: PVP oficial FERMAX

¿Eres instalador? Crea tu cuenta profesional y accede al mejor precio del mercado para este producto, con soporte técnico especializado y condiciones de envío preferentes.

No vendemos a particulares a tarifa de distribuidor. Tu precio profesional es exclusivo para instaladores verificados y tu margen de negocio queda protegido.

Preguntas frecuentes

¿Por qué veo PVP? Porque aún no iniciaste sesión con una cuenta profesional.

¿Cuándo veré mi precio PRO? Al validar tu cuenta de instalador; suele ser en menos de 24 h.

¿Qué obtengo como PRO? Tarifas con descuento, soporte experto y logística prioritaria.

¿Vendéis a particulares al mismo precio? No. En Profermax los precios profesionales están reservados exclusivamente para instaladores y empresas del sector verificadas. Mostramos el PVP oficial de Fermax para respetar la política comercial del fabricante y proteger el margen de negocio de nuestros clientes profesionales. Esto nos diferencia de otras plataformas que publican precios rebajados visibles para cualquier visitante.

Description

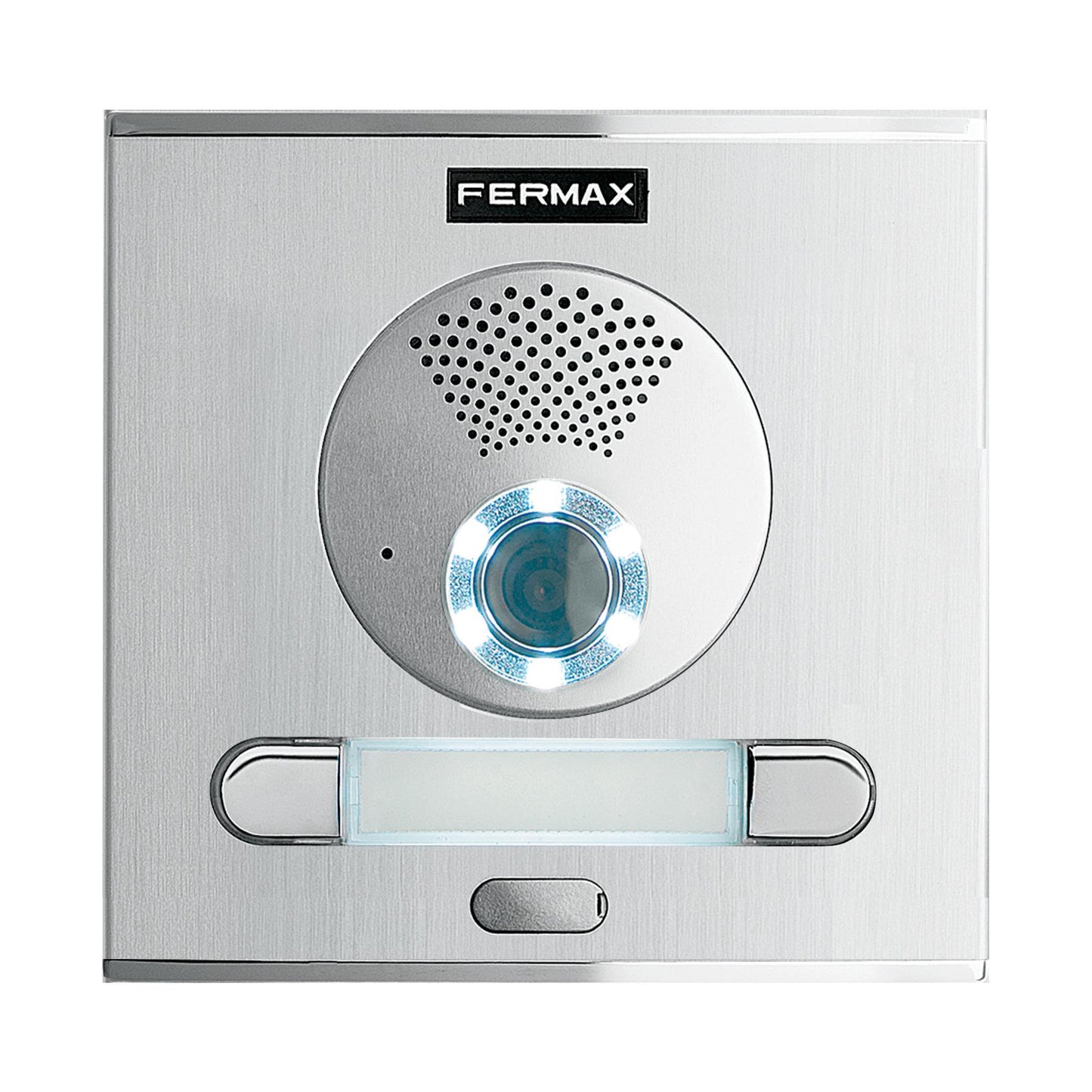

The CityLine entrance panel with DUOX PLUS technology is designed for buildings, allowing communication with homes , opening doors , and calling the concierge . Its two-wire digital system offers simple and efficient installation.

This model is more robust, aesthetically pleasing, and functional . Its curved-convex design maintains compatibility with the City Classic series, ensuring immediate replacement and refurbishment.

Made of anodized aluminum , the plate offers great resistance to weather and climate changes ( IP43 IK07 ). It features chrome-plated zamak on the ends and buttons, as well as a stainless steel grille for internal protection.

Main Features

  • WIDE ANGLE COLOR camera with integrated lighting and adjustable focus.
  • Fisheye correction , color night vision and Pan & Tilt digital zoom .
  • Chrome-plated zamak push buttons , durable and waterproof for outdoor use.
  • Illuminated polycarbonate card holders , accessible from the front.
  • Acoustic indicator that confirms the call button has been pressed.
  • Adjustable volume in both directions of communication.
  • Combinable plates : several of the same series can be joined together with separators.
  • It does not include a flush-mount or surface box , they are purchased separately.

Installation and System

  • DUOX PLUS system (2-wire digital).
  • Power supply: 18-24 Vdc.
  • Consumption: Standby 240 mA / Active audio 560 mA.
  • Recommended for: Multi-unit buildings with centralized access.

Technical Specifications

  • LED lighting consumption: 3.5 mA per card holder.
  • Series: 1.
  • Technology: DUOX.
  • Protection: IP43 IK07.

Video Specifications

  • Sensor: 1/3" color CMOS.
  • Effective pixels: 340K (720x576 pixels).
  • Minimum illumination: 0 lux (integrated LEDs).
  • Sent resolution: 368x288 pixels.
  • Video codec: H264 Highline Profile.
  • Viewing angle: 120º horizontal, 80º vertical.
  • Auto iris and auto BLC.

Dimensions and Weight

  • Plate measurements: 130 x 128 mm.
  • Flush-mounted box measurements: 115 x 114 x 45 mm.
  • Surface box measurements: 130 x 128 x 33 mm.
  • Weight: 0.599 kg.
  • Packaged product dimensions: 7.3 x 14.8 x 13.8 cm.
  • EAN 13: 8424299400082.
