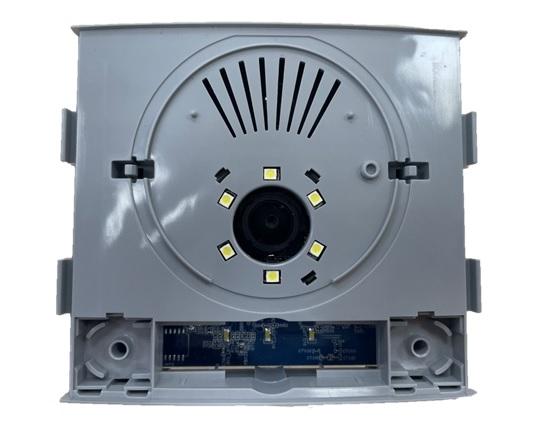

5503 LYNX MARINE VIDEO AMPLIFIER

Description

Lynx is the most advanced technological system for managing communications, security, and comfort in residential complexes. Setting new standards in processing power and performance, it offers solutions beyond a simple TCP/IP system, providing a robust and flexible platform for system integrators and residents.

With Lynx, communication extends from inside to outside the homes, ensuring privacy and connectivity in an interactive community. It also provides a secure and reliable connection to building staff and allows for convenient, personalized device control tailored to each resident's specific needs.

Installation is easy, using Ethernet (PoE) and compatible with existing local area networks, without the need for a central server. Lynx allows for simple configuration via SD card and supports unlimited technical capacity, with unlimited monitors and long distances between devices.

The color video amplifier module is ideal for integration into video intercom panels, such as the SKYLINE panel , a modular and robust design that combines functionality and aesthetics, with interchangeable modules of different sizes (V and W), facilitating greater customization of the installation.

Technical Specifications

• Lynx amplifier power supply: 12 Vdc.
• Vivo Monitors Power Supply: 12 Vdc or standard 802.3af PoE.
• Consumption: standby: 190 mA, active audio: 500 mA.
• Audio power direction home-street: 2W.
• Audio power direction home-street (speakers): 2 x 2W.
• Volume: adjustable in both directions.
• Operating temperature: -10 to 60 ºC.
• Module W measurement: 105.2x95 mm (width-height).

Camera Specifications:

• Lens: 90º.
• Horizontal resolution: 380 lines.
• Sensitivity: 0.5 lux.
• Autobalance: Yes.
• Backlight compensation: Yes.

Video Specifications:

• Resolution: VGA (640x480 pixels).
• Sensor: 1/3” color CMOS.
• Number of effective pixels: 270K.
• Minimum external illumination: 0.5 lux.
• S/N ratio: >45dB.
• Frame rate: 25 fps.
• Night vision: White LEDs for color vision.

EAN 13: 8424299055039
