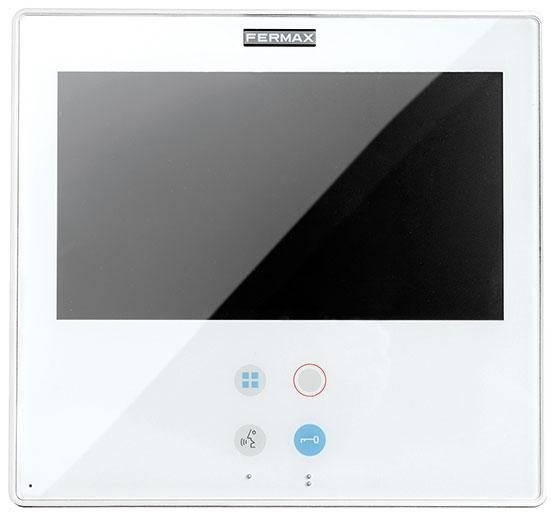

6573 SMILE MONITOR 7" VDS BASIC DOMINIUM

Description

The Smile 7" VDS Basic Dominium Monitor is an innovative video intercom device with a 7-inch capacitive touchscreen. Designed to offer private communication and completely hands-free operation, this monitor includes a color, brightness, and contrast control system and is ideal for VDS systems. Its high-resolution screen design (800x480) ensures a crisp and clear viewing experience.

Technical Characteristics

• Screen: 7” capacitive touch, 800x480 resolution, 16:9 format, contrast ratio 500/1, luminance 400 nits.
• Audio: 1 x 1W speakers, adjustable audio level, selectable ringtones, private communication.
• Power supply: 18V DC.
• Technology: VDS
• Connections: 5 wires, UTP Cat 5, 3+coaxial.
• Video Connections: 75 Ω board video input and output, camera activation (12Vdc), 75 Ω auxiliary video input (used for CCTV).
• Additional connections: Output activation for devices such as relays, panic button input, door-to-home call button.
• Product dimensions: 185 x 172 x 21 mm.
• Weight: 0.551 kg.
• Packaged product dimensions: 4.7 x 20.8 x 22 cm.
• EAN 13: 8424299065731
