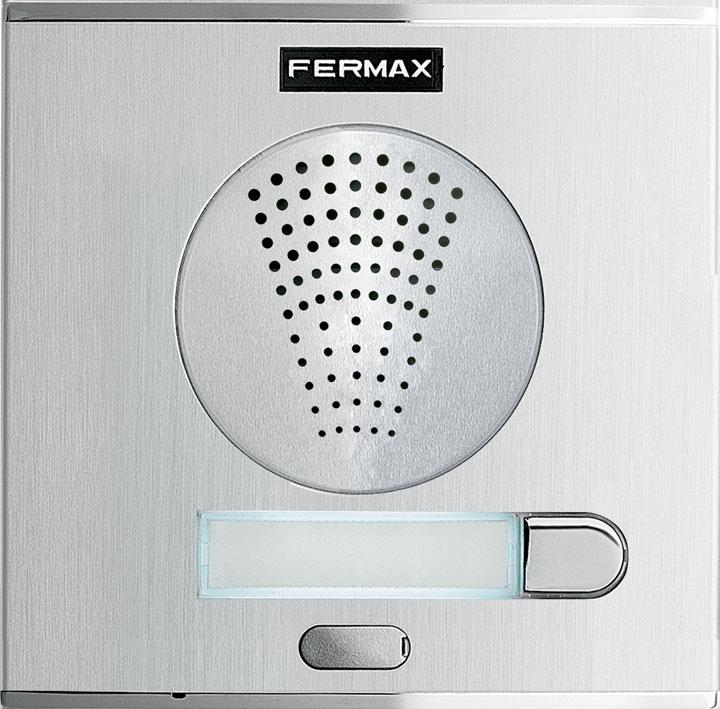

70701 CITY PLATE S1 AP101 4+N

Description

The CityLine entrance panel is a building access system that allows communication with residential units , door opening , and concierge calls . Its modern and functional design ensures easy and secure installation.

This version incorporates a curved-convex design , maintaining compatibility with previous models for quick replacement and replenishment.

Made of anodized aluminum , it offers high resistance to weathering and climate changes. Chrome-plated zamak pushbuttons ensure durability and reliability outdoors.

Main Features

• Chrome-plated push buttons made of injected zamak , weather-resistant.
• Illuminated card holder to identify homes even in the dark.
• Acoustic indicator that confirms the call button has been pressed.
• Plates can be combined within the same series using separators.
• Backward compatible for easy replacement.
• Does not include flush or surface box , must be purchased separately.

System and Wiring

• Conventional 4+N System : common wires plus 1 call wire per home.
• Recommended for: Small/medium buildings (up to 50 residents), residential developments and multiple access points.
• Intercom Wiring: 4 common wires + N (1 call wire per home).
• Video Intercom Wiring: 7 common wires + 1 video coaxial + N (1 call wire per home).
• Maximum installation distance : Depends on the cable section (see technical manual).

Technical Specifications

• Volume adjustable in both directions.
• Operating temperature: -10 to 60 ºC.
• Technology: 4+N.
• Weight: 0.599 kg.
• Packaged product dimensions: 7.3 x 14.8 x 13.8 cm.
• EAN 13: 8424299707013.
