70741 CITY PLATE S4 AP104 4+N

Description

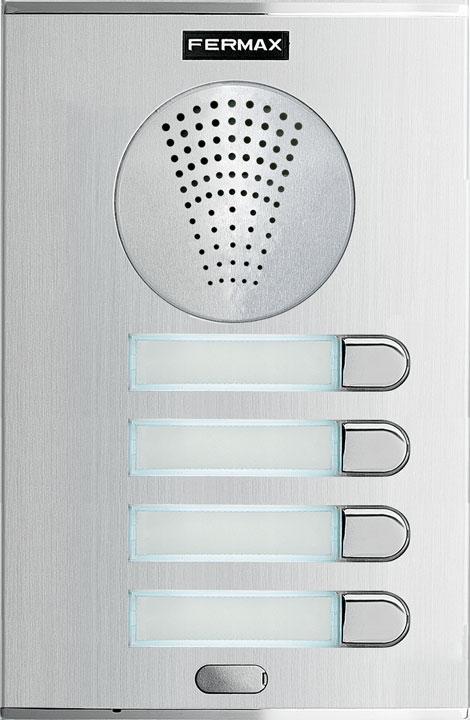

The CityLine outdoor panel is a modern and robust solution for building access . It allows communication with residential units , door opening , and concierge calls , integrating audio and video functions into its video intercom version.

This model features a curved-convex design and is made of anodized aluminum , ensuring high resistance to weather and climate changes. It also includes chrome-plated zamak push buttons for greater durability.

Main Features

• Chrome-plated pushbuttons made of injected zamak , watertight and resistant to outdoor conditions.
• Illuminated card holder to identify homes even in the dark.
• Acoustic indicator that confirms the call button has been pressed.
• Plates can be combined within the same series using separators.
• Backward compatible for easy replacement.
• Does not include flush or surface box , must be purchased separately.

System and Wiring

• Conventional 4+N System : common wires plus 1 call wire per home.
• Recommended for: Small/medium buildings (up to 50 residents), residential developments and multiple access points.
• Intercom Wiring: 4 common wires + N (1 call wire per home).
• Video Intercom Wiring: 7 common wires + 1 video coaxial + N (1 call wire per home).
• Maximum installation distance : Depends on the cable section (see technical manual).

Technical Specifications

• Power: Audio: 12 Vac | Video: 18 Vdc.
• Consumption:
  • Rest: 180 mA.
  • Call: 700 mA.
  • Active audio: 480 mA.
  • Audio + video: 560 mA (camera: 80 mA).
  • LED card module lighting: 35 mA per module.
• Technology: 4+N.
• Weight: 0.772 kg.
• Packaged product dimensions: 6.9 x 20 x 26.7 cm.
• EAN 13: 8424299707419.
