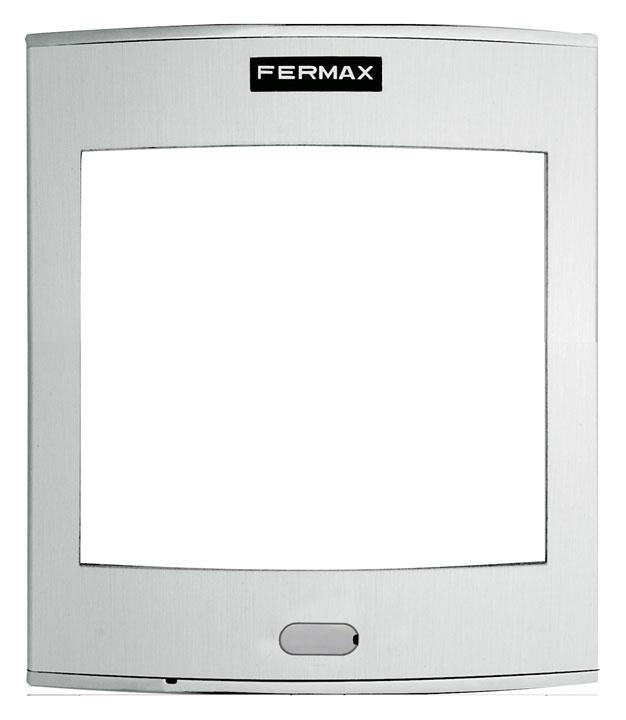

7332 SKYLINE 2V S2 FRAME

Description

The new SKYLINE panel is a robust and elegant solution for intercom and video intercom systems. It stands out for its durability, strength, and reliability , offering a modular design adaptable to a variety of needs.

Main Features

• Modular design: Compatible with push buttons, card readers, cameras, amplifiers, and access control.
• High resistance: Made with robust materials for greater durability.
• Flexible composition: Available in different frame and module sizes.
• Combinable: Several plates of the same series can be joined together for greater capacity of pushbuttons and accessories.

Module Dimensions

• Module V: 105.2 x 47.5 mm (width-height).
• Module W: 105.2 x 95 mm (width-height).

Technical Specifications

• Model: SKYLINE 2V frame.
• Series: 2.
• Plate dimensions: 130 x 151 mm (width-height).
• Flush-mounted box measurements: 115 x 138 x 45 mm (width-height-depth).
• Surface box measurements: 130 x 151 x 33 mm (width-height-depth).
• Technology: GENERIC.
• Weight: 0.349 kg.
• Packaged product dimensions: 22 x 13.8 x 4.2 cm.
• EAN 13: 8424299073323.
