7366 2 PULS. 102V 4+N SKYLINE

Description

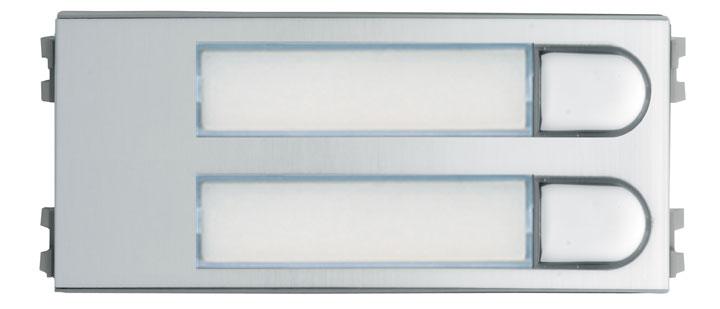

The Fermax SKYLINE push-button module is designed to integrate perfectly into the SKYLINE modular panel , offering a robust and functional solution for electronic and video intercom systems.

Main Features

• Durable material: Injected zamak push buttons with chrome finish, designed for outdoors.
• Integrated lighting: Allows you to view the card holders even in complete darkness.
• Front card holder: Made of polycarbonate, with easy access for ID tags.
• Greater durability: Special gold-plated contacts for greater resistance to wear.
• Easy installation: Pressure anchoring system and simple connection between modules.
• Acoustic confirmation: When pressed, the amplifier emits a confirmation audible warning.
• Variety of options: Available in single and double push-button versions.

Compatibility and Dimensions

This module is compatible with the SKYLINE board , a modular solution that allows the integration of different elements such as cameras, amplifiers and access controls.

• Module V: 105.2 x 47.5 mm (width-height).
• Module W: 105.2 x 95 mm (width-height).

Technical Specifications

• Technology: 4+N.
• Consumption: 3 mA (lighting per row of buttons).
• Weight: 0.122 kg.
• Packaged product dimensions: 11.5 x 5 x 3.3 cm.
• EAN 13: 8424299073668.
