7375 1 PULS. 101V DUOX/BUS2/VDS SKYLINE

Description

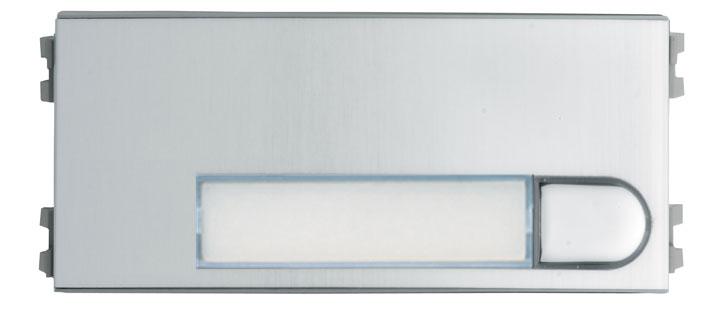

The Fermax SKYLINE push button module is designed to integrate with the SKYLINE modular panel , providing reliability, durability and elegant design in electronic door entry and video door entry systems.

Main Features

• Premium material: Injected Zamak with chrome finish.
• High resistance: Watertight for outdoor use.
• Integrated lighting: Improves visibility of cardholders in low-light conditions.
• Front card holder: Made of polycarbonate to include name and door number.
• Long durability: Gold-plated contacts for greater resistance.
• Easy installation: Snap-on mounting and plug-in connectors.
• Audible confirmation: Pressing the button is confirmed with an acoustic signal.
• Available models: Single and double push buttons.

Compatibility and Dimensions

This module integrates with the SKYLINE board , allowing combination with other modules such as cameras, amplifiers and access controls.

• Module V: 105.2 x 47.5 mm (width-height).
• Module W: 105.2 x 95 mm (width-height).

Technical Specifications

• Technology: Generic (compatible with VDS and BUS2 systems).
• Consumption: 3 mA (lighting per row of buttons).
• Weight: 0.117 kg.
• Packaged product dimensions: 11.5 x 5 x 3.3 cm.
• EAN 13: 8424299073750.
