7376 2 PULS. 201V DUOX/BUS2/VDS SKYLINE

Description

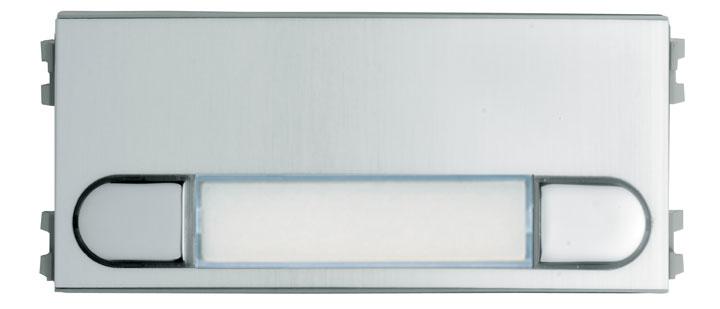

The Fermax SKYLINE push-button module is a robust and aesthetic solution for electronic and video door entry systems. Designed to integrate seamlessly into the SKYLINE modular panel , it offers durability, strength, and ease of installation.

Main Features

• Premium material: Injected Zamak with chrome finish.
• High resistance: Watertight for outdoor use.
• Integrated lighting: Makes it easy to see the card holders in the dark.
• Front card holder: Made of polycarbonate to include name and door number.
• Long durability: Gold-plated contacts for greater resistance.
• Easy installation: Snap-on mounting and plug-in connectors.
• Audible confirmation: Acoustic signal when the button is pressed.
• Available models: Single and double push buttons.

Compatibility and Dimensions

Compatible with the SKYLINE board , it allows combination with other modules such as cameras, amplifiers and access controls.

• Module V: 105.2 x 47.5 mm (width-height).
• Module W: 105.2 x 95 mm (width-height).

Technical Specifications

• Technology: Generic (compatible with VDS and BUS2 systems, without the need for call extension modules).
• Consumption: 3 mA (lighting per row of buttons).
• Weight: 0.121 kg.
• Packaged product dimensions: 11.5 x 5 x 3.3 cm.
• EAN 13: 8424299073767.
