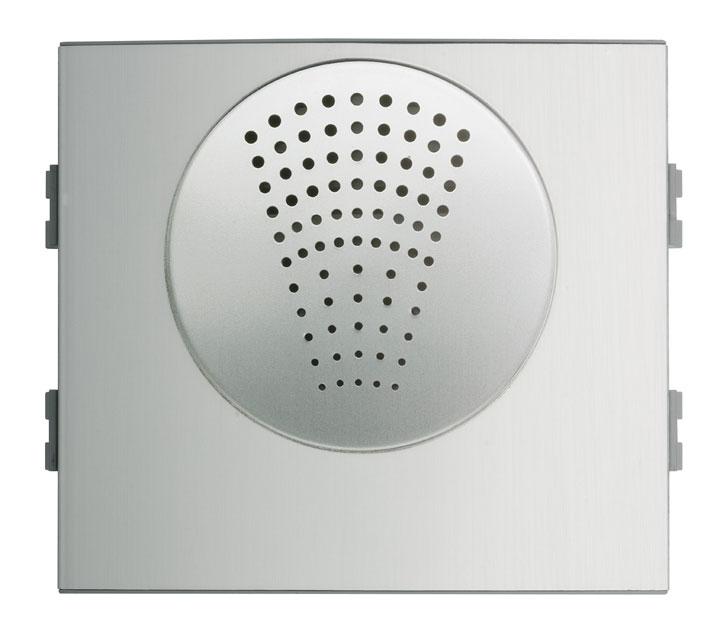

7399 SKYLINE AUDIO MODULE 4+N KIT

Description

The Fermax SKYLINE Amplifier Module is the key component for audio system operation in electronic door entry installations. It incorporates the essential electronic circuitry for two-way communication, door opening, and volume adjustment, ensuring an optimal user experience.

Main Features

• Integrated audio unit: Allows communication between the street and the home.
• Volume control: Adjustable in both directions (street-home and home-street).
• High resistance: Designed to withstand extreme temperatures from -25 to +70 ºC.
• Easy installation: Compatible with the SKYLINE modular plate and its simple mounting system.
• Complete modularity: Compatible with other modules such as pushbuttons, cardholders and access controls.

Compatibility and Dimensions

Compatible with the SKYLINE board , allowing combination with other modules to adapt the installation to the building's needs.

• Module V: 105.2 x 47.5 mm (width-height).
• Module W: 105.2 x 95 mm (width-height).

Technical Specifications

• System: Conventional (4+N) with 4 common wires and 1 call wire per home.
• Recommended installation: Small and medium-sized buildings (up to 50 residents), with multiple access points and concierge services.
• Operating temperature: -25 to +70 ºC.
• Adjustable volume: Audio adjustment in both directions.
• Weight: 0.285 kg.
• Packaged product dimensions: 6 x 13.5 x 10 cm.
• EAN 13: 8424299073996.
