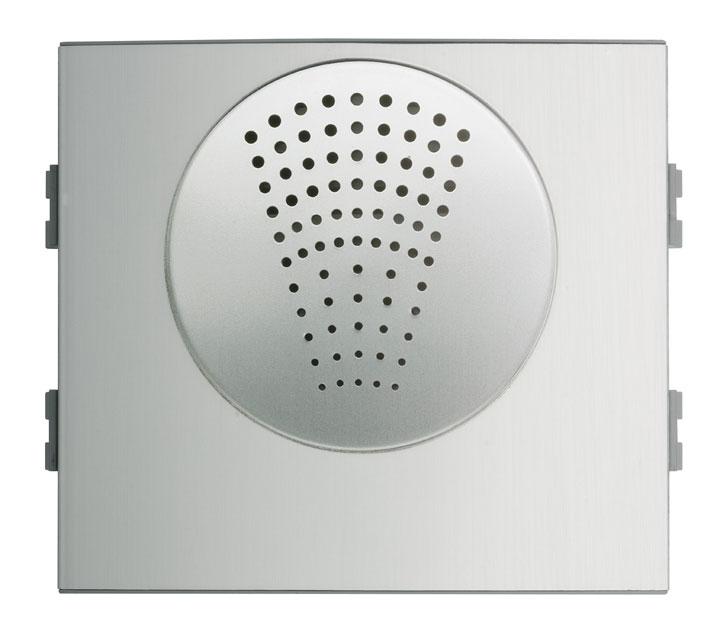

7400 AUDIO MODULE W 4+N SKYLINE

Description

The Fermax SKYLINE Amplifier Module is the essential component for audio system operation in electronic door entry installations. It incorporates the electronic circuitry necessary for communication, door opening, and volume adjustment, ensuring excellent sound quality.

Main Features

• Integrated audio unit: Facilitates communication between the street and the home.
• Volume control: Adjustable in both directions (street-home and home-street).
• High resistance: Designed to withstand extreme temperatures from -25 to +70 ºC.
• Easy installation: Compatible with the SKYLINE modular plate and its simple mounting system.
• Complete modularity: Compatible with other modules such as pushbuttons, cardholders and access controls.

Compatibility and Dimensions

Compatible with the SKYLINE board , allowing combination with other modules to adapt to different needs.

• Module V: 105.2 x 47.5 mm (width-height).
• Module W: 105.2 x 95 mm (width-height).

Technical Specifications

• System: Conventional (4+N) with 4 common wires and 1 call wire per home.
• Recommended installation: Small and medium-sized buildings (up to 50 residents), with multiple access points and concierge services.
• Operating temperature: -25 to +70 ºC.
• Adjustable volume: Audio adjustment in both directions.
• Weight: 0.299 kg.
• Packaged product dimensions: 13.5 x 10 x 6 cm.
• EAN 13: 8424299074009.
