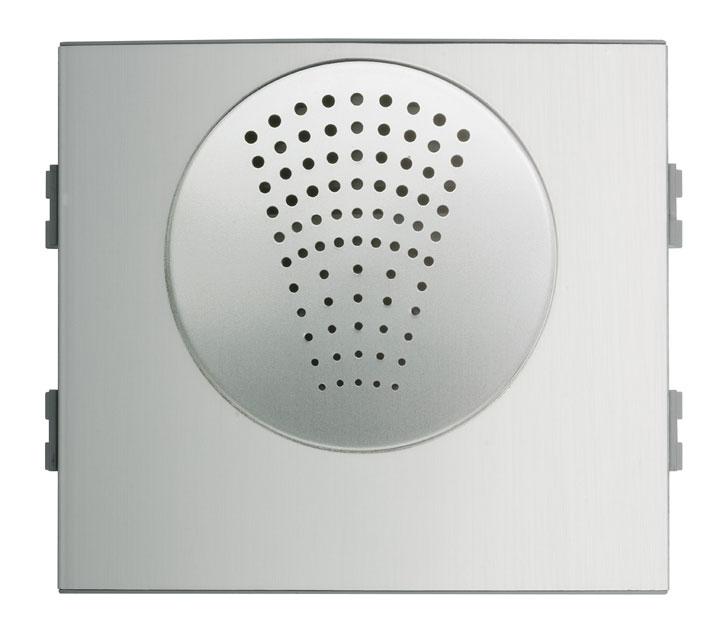

7415 AUDIO MODULE W VDS SKYLINE

Description

The Fermax SKYLINE VDS Amplifier Module is an essential component for intercom and video intercom systems. Designed to facilitate communication and door opening, it features volume adjustment and an integrated voice message that alerts the user when the door has been opened.

Main Features

• Integrated audio unit: Ensures clear and private communication.
• VDS System: Does not require call wires per home, optimizing installation.
• Voice synthesizer: Automatic message "door open, close after entering."
• Volume control: Adjustable in both directions (street-home and home-street).
• High resistance: Withstands temperatures from -10 to 60 ºC.
• Versatile installation: Compatible with existing wiring when replacing analog door entry systems.

Compatibility and Dimensions

Designed to be integrated into the SKYLINE modular board , allowing combination with other modules.

• Module V: 105.2 x 47.5 mm (width-height).
• Module W: 105.2 x 95 mm (width-height).

Technical Specifications

• System: VDS (Simplified Installation without Call Wires).
• Recommended installation: Buildings with up to 199 homes with up to 2 entrances and a concierge.
• Maximum distance: 200 m from the first access to the last dwelling.
• Adjustable volume: Audio adjustment in both directions.
• Cabling:
  • Audio: 3-wire bus.
  • Video: UTP CAT5 / 5 wires / 3 wires + Coaxial.
• Operating temperature: -10 to 60 ºC.
• Weight: 0.32 kg.
• Packaged product dimensions: 13.5 x 10 x 6 cm.
• EAN 13: 8424299074153.
