Fermax

7700 CORA CONNECT DUOX PLUS S6 PLATE

7700 CORA CONNECT DUOX PLUS S6 PLATE

€995,00 EUR
€995,00 EUR
Sale Sold out
💡 Precio mostrado: PVP oficial FERMAX

¿Eres instalador? Crea tu cuenta profesional y accede al mejor precio del mercado para este producto, con soporte técnico especializado y condiciones de envío preferentes.

Preguntas frecuentes

¿Por qué veo PVP? Porque aún no iniciaste sesión con una cuenta profesional.

¿Cuándo veré mi precio PRO? Al validar tu cuenta de instalador; suele ser en menos de 24 h.

¿Qué obtengo como PRO? Tarifas con descuento, soporte experto y logística prioritaria.

Description

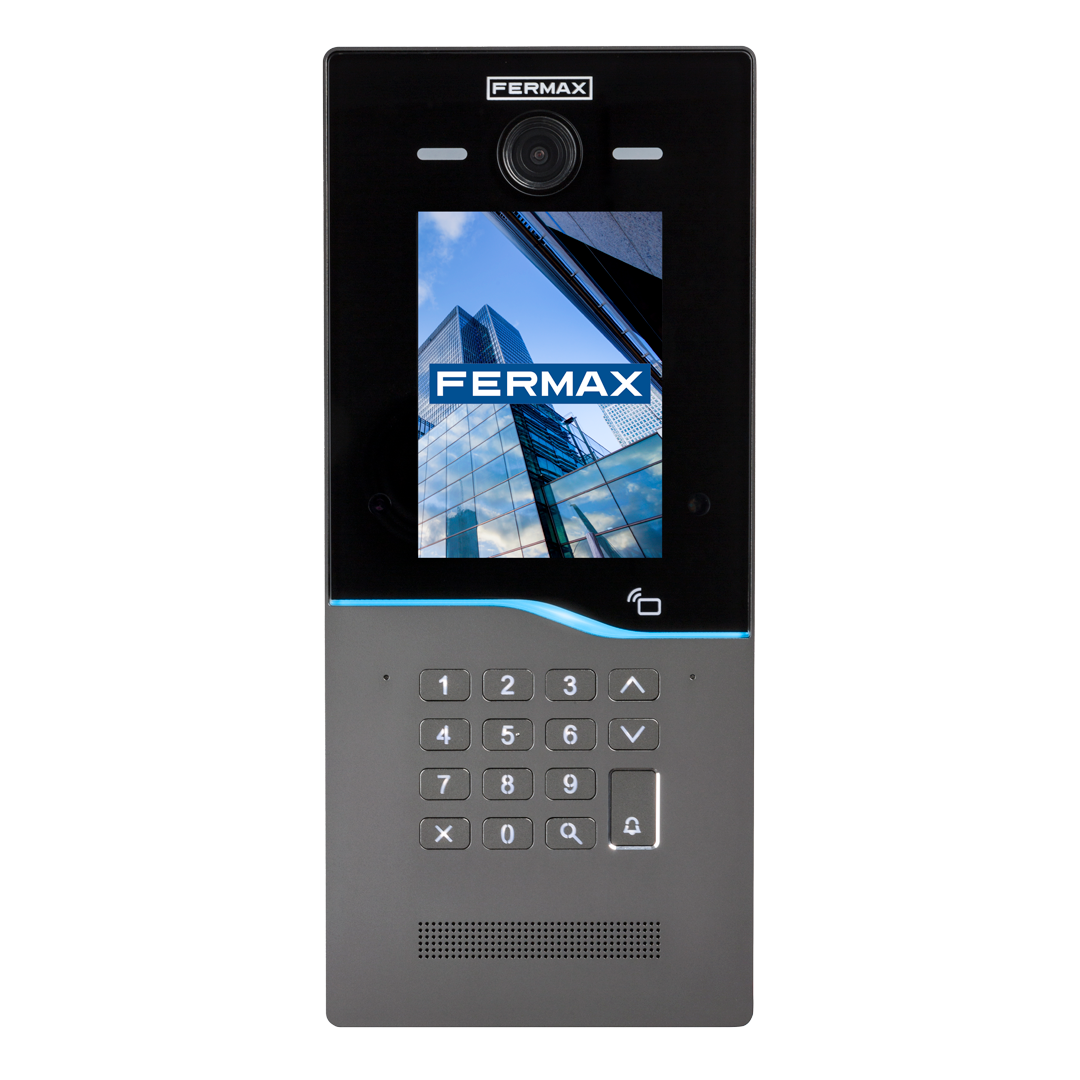

The CORA Entrance Panel is the evolution of the Fermax DUOX PLUS series, standing out for its elegant design and advanced interactive features. Its intuitive interface is displayed on a 5" color screen and allows interaction via a backlit mechanical keypad with accessible markings for the visually impaired.

It features a distinctive wave of LEDs that changes color and motion for a unique user experience. It's also easy to configure and manage from a mobile phone, tablet, or PC using a web server , without having to open the board.

Featured Features

  • 5” screen with presence sensors and automatic brightness adjustment.
  • Wide-angle color camera with integrated lighting and remote adjustment.
  • High-quality audio with CDS system and two digital microphones.
  • Access control via PIN, RFID cards or a combination of both (up to 10,000 users).
  • Villa Mode: Special configuration for single-family homes.
  • Advanced connectivity: Remote management, image upload, and firmware update.
  • CORA CONNECT: 4G integration with no additional costs for call forwarding to smartphones.
  • Compatibility: Compatible with all DUOX PLUS products (except iLOFT phone).

Technical Specifications

  • Power supply: 24Vdc non-polarized, compatible with DUOX Bus.
  • Operating temperature: -25ºC to +55ºC.
  • Relative humidity: 5% - 95% (non-condensing).
  • Protection: IP65 (dust and water resistant), IK08 (impact resistance).
  • Camera: Resolution 1280x720 px, color night vision with LEDs.
  • Screen: 5” 4:3 format, resolution 640x480 px.
  • Energy consumption:
    • Rest: 200mA.
    • Screen on: 260mA.
    • Call: 365mA.
    • Conversation: 490mA.
    • Call forwarding: 500mA.
  • Mounting: Installation in surface or recessed box (request separately).
  • Dimensions: 295.5 x 130 x 27.6 mm.
  • Weight: 1,512 kg.
  • EAN 13: 8424299077000.

Smart Connectivity

The CORA CONNECT feature enables 4G connectivity for the facility, facilitating call forwarding to smartphones using the FLEXI CALL plan.

The MyCONNECT portal provides remote control for installers, reducing maintenance costs and offering automatic updates.

Conclusion

The Fermax CORA Street Panel is the perfect solution for residential communities and single-family homes seeking security, elegant design and advanced technology .
