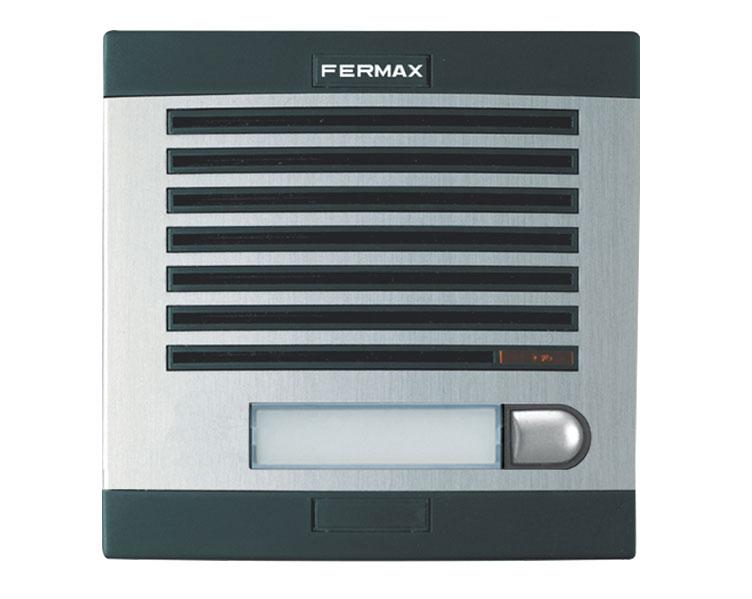

8300 AUDIO PLATE KIT CITY CLASSIC 1L

Description

The CityLine Classic entrance panel is designed for installation at building entrances, allowing communication with the home , opening the door , and calling the concierge . Its anodized aluminum construction guarantees high resistance to weather and climate changes.

Its unique curved-convex design provides both aesthetic appeal and functionality. It also includes a cellular rubber gasket for a perfect fit with the wall and to prevent water leaks.

It is possible to combine two or more plates of the same series, using a set of spacers for precise installation.

Main Features

• Material: Anodized aluminum in aluminum color.
• Rounded metal pushbuttons with silver-plated contacts for greater durability.
• Acoustic indicator that confirms the call button has been pressed.
• Illuminated card holders to display names and house numbers even in the dark.
• Conventional system with wiring adaptable to intercom and video intercom.

Installation and Wiring

• Doorman: 4 common wires + 1 call wire per home.
• Video intercom: 7 common wires + 1 coaxial video + 1 call wire per home.
• Recommended for: Small and medium-sized buildings (up to approximately 50 residents), developments with general access and interior blocks.

Technical Specifications

• Operating temperature: [-25ºC, +70ºC]
• Technology: 4+N

Dimensions and Weight

• Weight: 0.499 kg
• Packaged product dimensions: 7 x 15 x 14 cm
• EAN 13: 8424299083001
