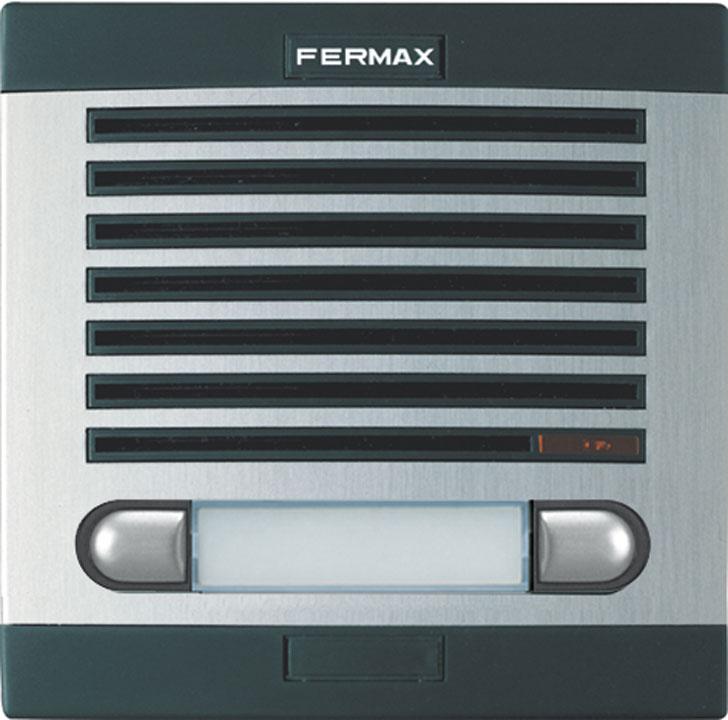

8501 CITY CLASSIC PLATE 1 AP 201

Description

The CityLine Classic entrance panel is a robust and functional solution for access control in buildings . It allows communication with residential units , door opening , and calls to the concierge . Designed with a curved-convex profile, it offers an elegant aesthetic and excellent wall integration.

Made of anodized aluminum , it guarantees high resistance to weathering and climate changes. It includes a cellular rubber gasket that prevents water leaks, ensuring a long-lasting installation.

Main Features

• Curved-convex design that improves aesthetics and functionality.
• Made of anodized aluminum , resistant to corrosion.
• Cellular rubber sealing gasket to prevent leaks.
• Compatible with other plates in the series using separators .
• Aluminum color .

System and Wiring

• Conventional System (4+N), with common wires and one call wire per home.
• Ideal for small or medium-sized buildings (up to 50 residents).
• Recommended for facilities with multiple access points and concierge services .
• Cabling:
• Doorman: 4 common wires + N (1 call wire per home).
• Video intercom: 7 common wires + 1 coaxial video + N (1 call wire per home).

Technical Specifications

• Technology: 4+N.
• Weight: 0.496 kg.
• Packaged measurements: 7 x 15 x 14 cm.
• EAN 13: 8424299085012.
