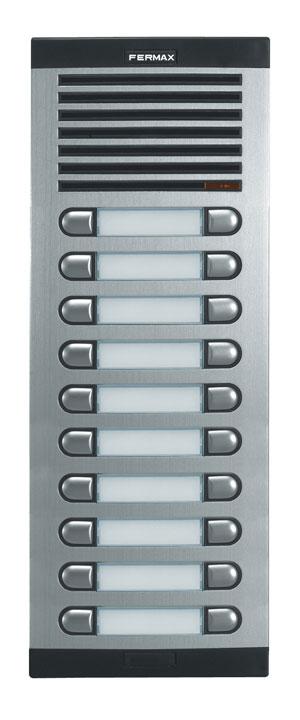

8701 PLATE CITY CLASSIC 7 AP 210

Description

The CityLine Classic entrance panel is a modern and functional solution for access control in buildings . It allows communication with residential units , door opening , and concierge calls . Its curved-convex design provides an enhanced aesthetic appearance.

Made of anodized aluminum , it guarantees resistance to weather and climate changes . It includes a cellular rubber gasket that prevents water leaks, ensuring a secure and long-lasting installation.

Main Features

• Curved-convex design that improves aesthetics and functionality.
• Made of anodized aluminum , resistant to corrosion.
• Cellular rubber sealing gasket to prevent leaks.
• Compatible with other plates in the series using separators .
• Rounded metal push buttons in line with the curved design.
• Illuminated card holder to view names even in the dark.
• Acoustic confirmation when pressing the call button.
• Silver-plated contacts for durability.

System and Wiring

• Conventional System (4+N), with common wires and one call wire per home.
• Ideal for small or medium-sized buildings (up to 50 residents).
• Recommended for facilities with multiple access points and concierge services .
• Cabling:
• Doorman: 4 common wires + N (1 call wire per home).
• Video intercom: 7 common wires + 1 coaxial video + N (1 call wire per home).

Technical Specifications

• Technology: 4+N.
• Weight: 0.822 kg.
• Packaged measurements: 7 x 36.5 x 14 cm.
• EAN 13: 8424299087016.
