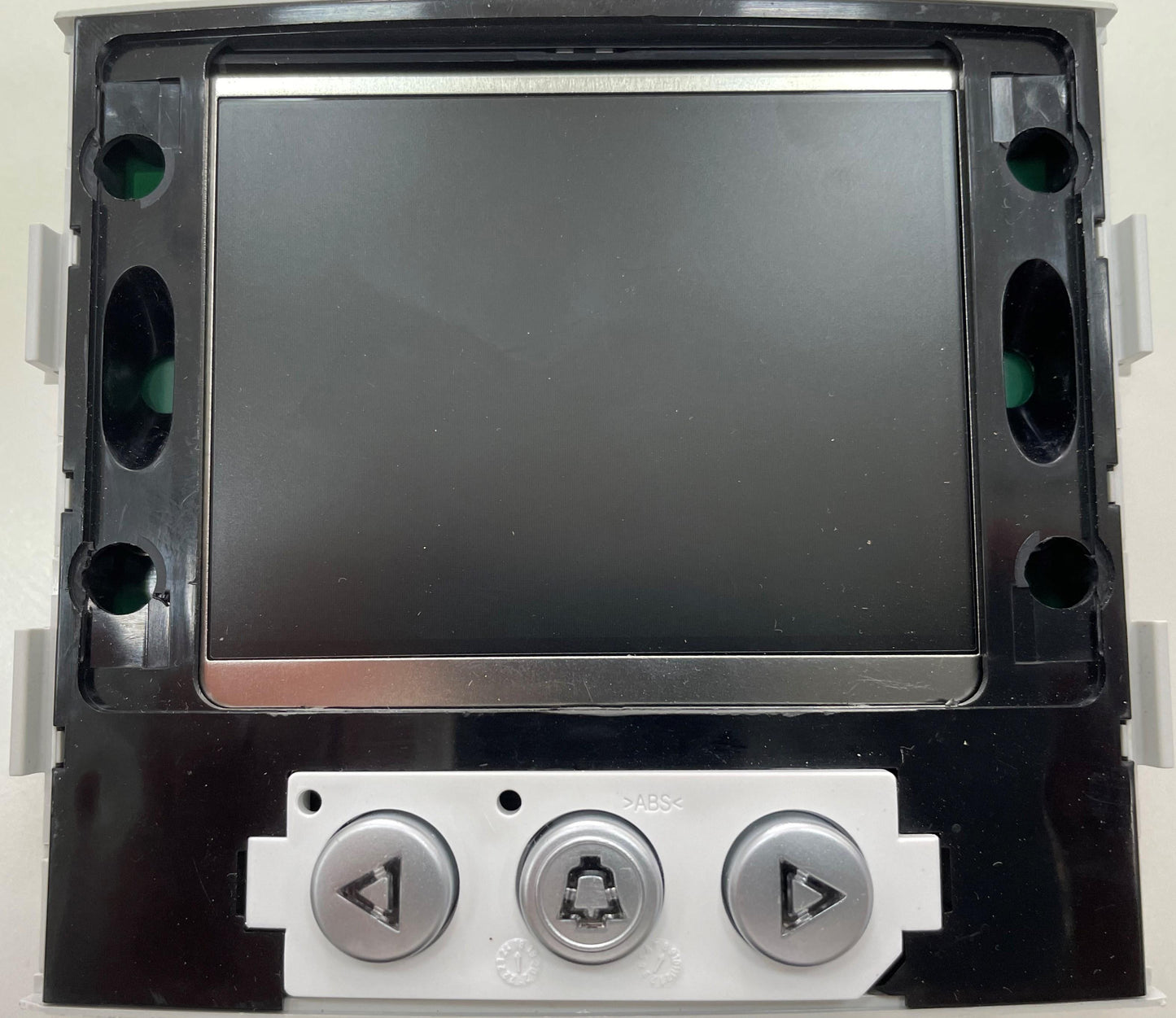

9312 LYNX MARINE DIRECTORY

Description

Lynx is the most advanced technological system for managing communication, security, and comfort in residential complexes. This innovative system has transformed the world of video intercoms, setting new standards in processing power and performance.

Lynx goes beyond a simple TCP/IP system, providing the best solutions for both system integrators and residents. It combines advanced technology, design, and engineering to offer:

• Communication: Connects the interior and exterior of the home, creating an interactive community for residents while ensuring their privacy.
• Security: Maintains a reliable connection with the building's service staff, ensuring the protection of each family.
• Comfort: Allows the integrator complete freedom to choose and configure the system, adapting it to the specific needs of each resident.

Lynx installation is easy and robust, thanks to:

• Power over Ethernet (PoE), which simplifies installation.
• The ability to be installed over existing local area networks with structural cable (SCS).
• The point-to-point SIP architecture that allows independent operation of each device.
• SD card configuration, which makes installation even easier.

Lynx offers unlimited technical capacity, allowing the management of an unlimited number of monitors and unlimited distances in the installation.

The Lynx display module allows you to search and view the list of residents (electronic directory) and call homes using the code or a directory search. The system is fully compatible with the new Fermax SKYLINE panel, offering flexibility and durability thanks to its modular design.

Technical Specifications

• Lynx amplifier power supply: 12 Vdc.
• Vivo Monitors Power Supply: 12 Vdc or standard 802.3af PoE.
• Operating temperature: -10 to 60 ºC.
• Technical Specifications Display:
• Size: 3.5 inches.
• Format: 4:3.
• Resolution: 320 x 240 pixels.
• Colors: 262,000.
• Contrast ratio: 500/1.
• Viewing direction: 12 o'clock.
• Luminance: 400 nits.
• Viewing angle: 160H / 160V.
• Backlight: 6 LED diodes.

Technology: LYNX

Product Dimensions: 105.2x95x20 mm

Weight: 0.234 kg

Product Dimensions (Packed): 6x13.3x10 cm

EAN 13: 8424299093123
