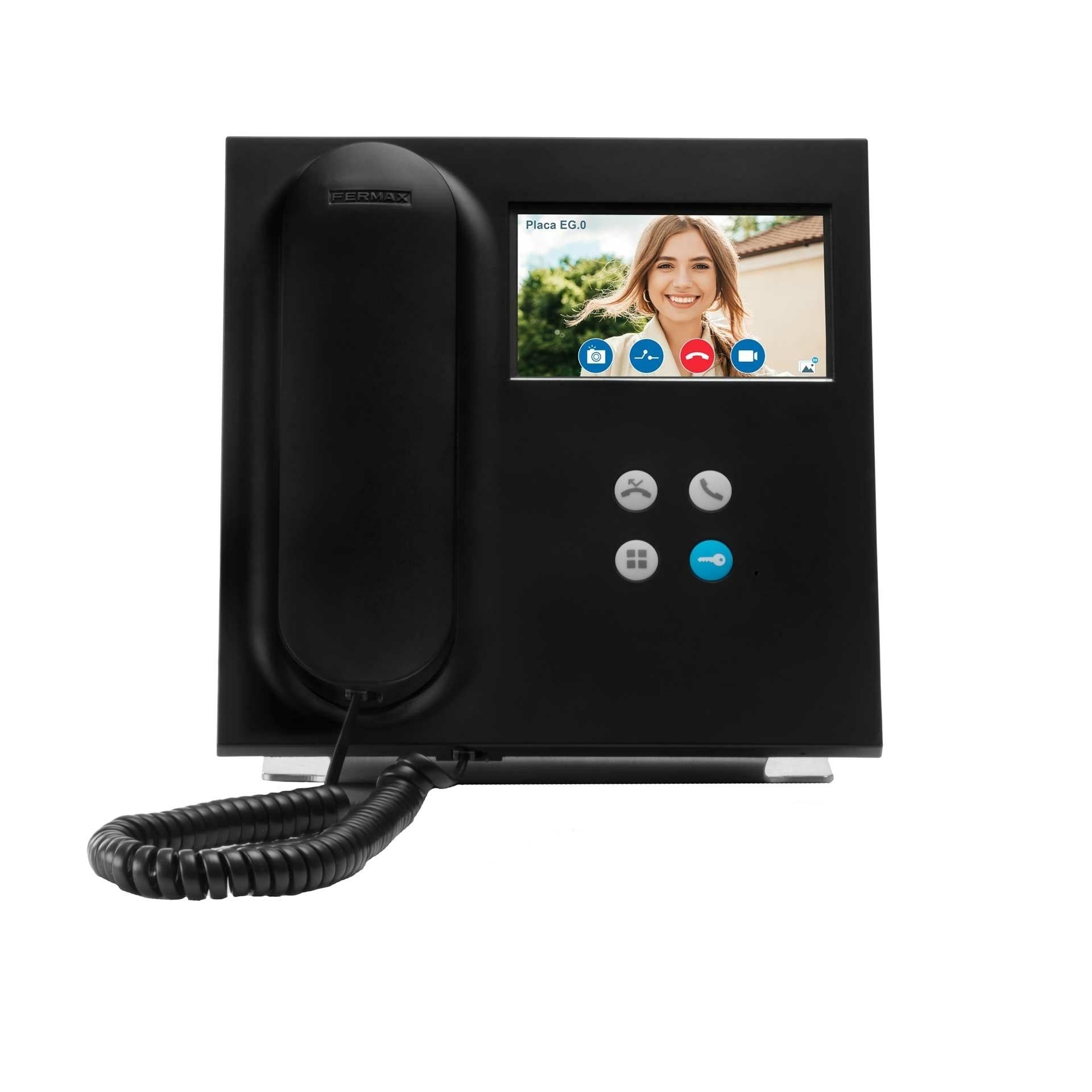

9424 VIDEO CONCIERGE I SEE WIFI DUOX PLUS

Description

The DUOX PLUS Intercom System is an advanced access management system with a 4.3" capacitive touchscreen and full-duplex audio. Its modern black design, made of UV-protected ABS , makes it durable and functional for any environment.

Main Functions

• 4 mechanical pushbuttons for basic functions.
• Full-Duplex Audio with conversation privacy.
• 4.3” capacitive touchscreen (480 x 272 px) with 16:9 widescreen format.
• Receiving and making calls to homes, street panels, or concierge units.
• Call forwarding to mobile/tablet using the DuoxMe app.
• Photocaller function for automatic and manual image capture.
• Missed call log (up to 50 of each type).
• Switching cameras while viewing images.
• Selection between 3 operating modes: Day, Mixed and Night.
• Private communication and terminal programming capabilities.
• Interface in 27 languages ​​and 10 selectable ringtones.
• Do Not Disturb Mode (ringtone silence).
• Touchscreen lock for cleaning.

Agenda and Connectivity

• Agenda for up to 10,000 users , 70 street panels and 30 concierge units.
• Export/import calendar from mobile, tablet or PC (Webserver).
• Supports connection with external devices such as call extender (ref. 2040) or light and bell activator (ref. 2438).
• Power strip with RJ45 connector for easy connection to the DUOX PLUS bus.

Technical Specifications

• Technology: DUOX PLUS digital (2 non-polarized wires).
• Number of concierges per facility: 10 in General Entrance / 10 per Block.
• Power supply: 18-24 Vdc.
• Consumption: Standby (WiFi active) 135 mA / Maximum 300 mA.
• Operating temperature: +5ºC to +40ºC.
• Operating humidity: 0% - 90%.
• Mounting: tabletop with stainless steel support (AISI316L), 60° tilt.
• Weight: 2.142 kg.
• Packaged measurements: 26.5 × 21 × 17 cm.
• EAN 13: 8424299094243.
