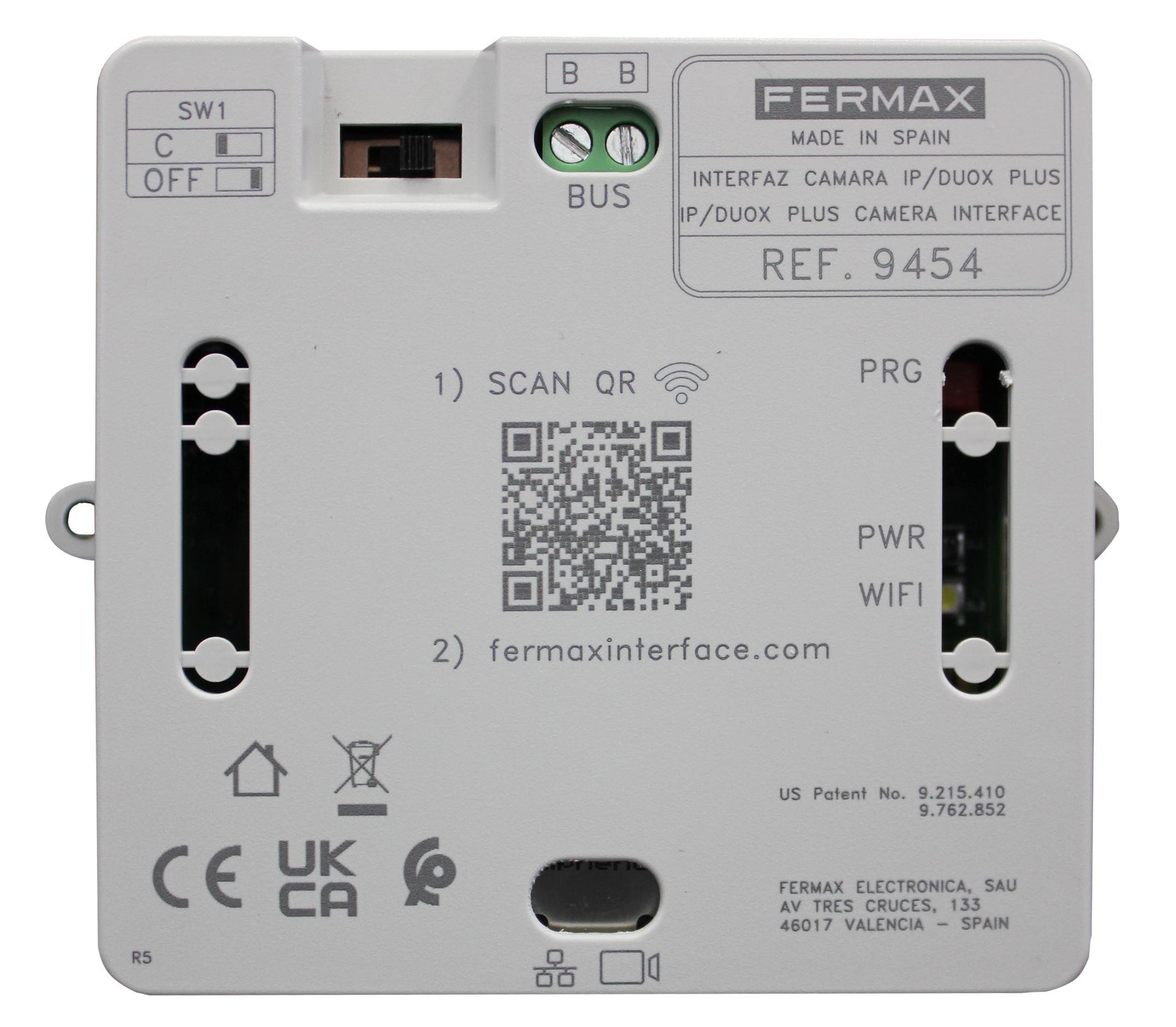

9454 IP/DUOX PLUS CAMERA INTERFACE

Description

This interface allows you to integrate IP video CCTV cameras into a DUOX PLUS installation, transforming the IP video signal (RTSP protocol) into a DUOX PLUS signal for direct connection to the system bus.

Typically, one interface is required for each installed camera. However, up to two cameras can be configured on a single interface in a single block, provided a PoE switch is used.

The cameras can be powered by an additional adapter ( ref. 9982 + ref. 9984 ) or via PoE, while the interface is powered directly from the DUOX PLUS bus.

Easy setup via WiFi from your mobile phone using an integrated web server.

An outdoor panel can be associated with the interface to allow opening from the IP camera display.

Note: It is not possible to view the IP camera and have audio from the panel at the same time.

Auto-start operation

By pressing the "camera button" on the monitor at rest, you can sequentially view different plates and cameras in the block or the general entrance.

Technical Specifications

• Supply voltage: 18Vdc - 24Vdc
• Standby power consumption: 140 mA max. / 104 mA max.
• Active consumption: 153 mA max. / 110 mA max.
• Operating temperature: -10 ºC to +55 ºC
• Humidity (non-condensing): 5% - 90%
• Technology: DUOX
• Product dimensions: 86 x 106 x 31 mm
• Weight: 0.237 kg
• Packaging dimensions: 6.5 x 18.1 x 9.6 cm
• EAN 13: 8424299094540
