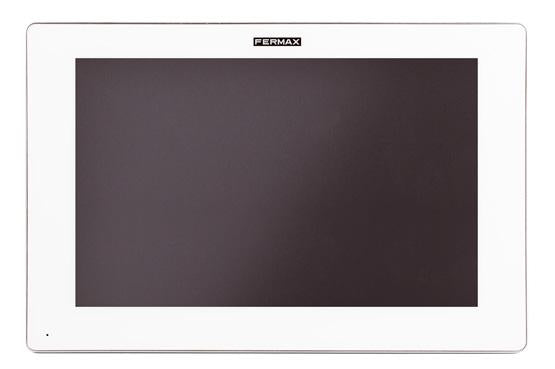

952701 MIO MONITOR 10" WHITE MEET

Description

MIO is a capacitive touchscreen monitor available in two formats: 7" and 10". The MIO's graphical interface makes its functions intuitive and easy for the user to understand. It also offers several security and control features such as alarm management, intercoms between apartments, and more.

Characteristics

• Capacitive touch screen (7''/10")
• Hands-free communication
• High definition color TFT
• Graphical user interface
• SIP Peer to Peer Protocol
• Low consumption
• Modular Android Platform
• High-capacity CPU
• Integrated alarms
• RS485 for future integrations
• Available in 10 languages
• 4 different colors available (white, black, silver, gold)
• Remote Firmware Update
• Automatic and manual image capture

Functions

• Concierge: Calls to the concierge with audio and video communication.
• Auto Plate On: Control of street plates and CCTV cameras.
• Apartment-to-Apartment Intercom: Calls between apartments within the same community.
• Call Log: View photos and call logs.
• Alarms: Management of 7 programmable alarm zones with security levels.
• Elevator Control: Integration with elevator systems and remote control.
• Messages: Receiving messages from the management software.
• Do Not Disturb: Function to silence the monitor for a period.
• User Settings: Ringtones, display, date and time, languages.
• Installer Settings: Advanced configuration of monitor parameters and alarms.

Technical Specifications

• CPU: Quad-core Cortex™-A7 1.5GHz
• GPU: Mali400MP2
• FLASH: 4GB
• SDRAM: 512 MB
• Screen: 7'' and 10'', resolution 1024x600
• Audio: Codec G.711, user-adjustable audio settings
• Consumption: 200 mA (7”), 210 mA (10”) in standby
• Connectivity: RJ-45 Ethernet, doorbell inputs and panic button
• Operating Conditions: -10ºC to +55ºC, humidity 20-85%

Measures

• Product dimensions: 270 x 168 x 20 mm
• Weight: 0.795 kg
• Packaged product dimensions: 6.8x31x21.5 cm
• EAN 13: 8424299952710
