9533 MILO VIDEO PLATE 1L MEET

Description

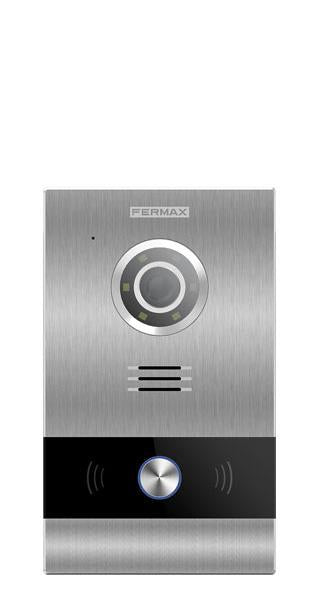

The MEET 1L PoE Video Panel is an advanced intercom device for residential and commercial buildings. Its aluminum profile and tempered glass design ensure durability and an elegant finish.

It features a high-definition color camera , low-power technology, and an extended operating range . Its modular, Linux- based platform allows for remote firmware updates to improve performance.

Main Functions

• Apartment Call: Allows visitors to communicate directly with the resident.
• Call to concierge: Possibility of requesting assistance from the concierge.

Technical Specifications

• Material: Aluminum profile and tempered glass.
• Processor: ARM Cortex-A7 1.2GHz.
• Memory: 128M FLASH, 64M SDRAM.
• Camera: 1/3” CMOS sensor, 1MP resolution, 120º diagonal viewing angle, 52º (V), 100º (H), minimum illumination 0.5 LUX.
• Audio: G.711 codec, audio level 17.7 dB.
• LED: White, consumption 60 mA.
• Power consumption: Standby: 125mA, Operation: 250mA.
• Power supply: PoE / 12 Vdc.
• Connectivity: RJ-45 Ethernet, exit button, door open sensor, door opening relay (NO, NC, C).
• Remote configuration and management: Built-in web server.
• Environmental conditions: Temperature: -25ºC to 60ºC, Humidity: 10-90%.
• Protection: IP54.
• Not compatible with elevator control function.

References and Compatibility

• Ref. 9533: 1L MEET Video Card.
• Ref. 9534: 1L MEET Video Board with MIFARE Classic proximity reader.
• Ref. 9543: S MEET flush-mounted box.
• Ref. 9519: S MEET surface box (Stainless steel).
• MIFARE Classic Reader (Ref. 9534): Compatible with 4-byte cards (Ref. 52740/52750).

Dimensions and Weight

• Product Dimensions: 118 x 183 x 49 mm.
• Weight: 0.811 kg.
• Packed dimensions: 8 x 25.5 x 16.5 cm.
• EAN 13: 8424299095332.
