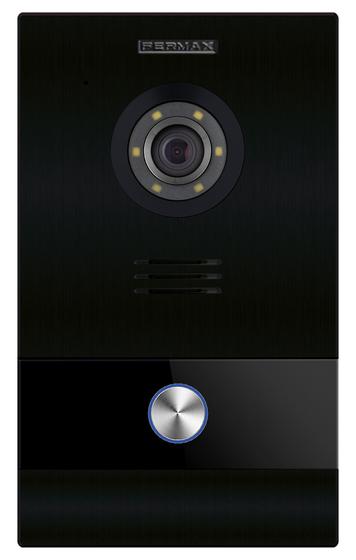

953303 MILO VIDEO PLATE 1L MEET BLACK

Description

The 1L MEET Black PoE Video Panel is a communication and access control system ideal for residential and commercial environments. Available in a single version without a proximity reader , this panel allows the identification of called devices using tags.

Made with an aluminum profile and tempered glass , it offers great strength and durability. Its high-definition color camera , SIP connectivity, and low power consumption ensure optimal performance. Additionally, the modular Linux- based platform allows for remote firmware updates to enhance functionality.

For the version with proximity reader, see the Milo 1L Grey Plate (Ref. 9534) .

Main Functions

• Apartment Call: Allows visitors to communicate with the associated apartment.
• Call to Concierge: Facilitates requesting assistance from the concierge.
• SIP Compatible: Offers integration with IP communication systems.
• Not compatible with Lift Control.

Technical Specifications

• Material: Aluminum profile and tempered glass.
• Processor: ARM Cortex-A7 1.2GHz.
• Memory: 128M FLASH, 64M SDRAM.
• Camera: 1/3” CMOS sensor, 1MP resolution, 120º diagonal viewing angle, 52º (V), 100º (H), minimum illumination 0.5 LUX.
• Audio: G.711 codec, audio level 17.7 dB.
• LED: White, consumption 60 mA.
• Power consumption: Standby: 125mA, Operation: 250mA.
• Power supply: 12 Vdc / PoE.
• Connectivity: RJ-45 Ethernet, exit button, door open sensor, door opening relay (NO, NC, C).
• Remote configuration and management: Built-in web server.
• Environmental conditions: Temperature: -25ºC to 70ºC, Humidity: 10-90%.
• Protection: IP54.

Connections

• RJ-45 10/100 Base-T Ethernet
• +, - : 12 Vdc Power input.
• BS, -, NA, SP: Exit button and open door sensor.
• NO, C, NC: Door opening relay terminals.
• 485+, 485-: RS485 serial port.

Dimensions and Weight

• Weight: 0.856 kg.
• Packed dimensions: 8 x 25.5 x 16.5 cm.
• EAN 13: 8424299953335.
