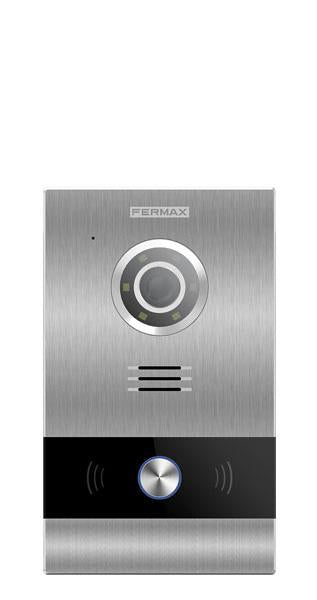

9534 MILO VIDEO PLATE 1L MEET WITH PROX

Description

The 1L MEET PoE Video Panel is an intercom and access control system designed to offer security and convenience in residential and commercial buildings. Available in two versions: with or without a Mifare proximity reader , it adapts to different access needs.

Its aluminum profile structure with tempered glass offers strength and durability. It also incorporates a high-definition color camera , low power consumption, and an extended operating range . Thanks to its Linux- based platform, it allows remote firmware updates to improve its performance.

Main Functions

• Apartment Call: Visitors can communicate directly with the associated apartment.
• Call to concierge: Possibility of requesting assistance from the concierge.
• Integrated access control: Available only in version Ref. 9534 with Mifare proximity reader.

Technical Specifications

• Material: Aluminum profile and tempered glass.
• Processor: ARM Cortex-A7 1.2GHz.
• Memory: 128M FLASH, 64M SDRAM.
• Camera: 1/3” CMOS sensor, 1MP resolution, 120º diagonal viewing angle, 52º (V), 100º (H), minimum illumination 0.5 LUX.
• Audio: G.711 codec, audio level 17.7 dB.
• LED: White, consumption 60 mA.
• Power consumption: Standby: 125mA, Operation: 250mA.
• Power supply: PoE / 12 Vdc.
• Connectivity: RJ-45 Ethernet, exit button, door open sensor, door opening relay (NO, NC, C).
• Remote configuration and management: Built-in web server.
• Environmental conditions: Temperature: -25ºC to 60ºC, Humidity: 10-90%.
• Protection: IP54.
• Not compatible with elevator control function.

References and Compatibility

• Ref. 9533: 1L MEET Video Board (without proximity reader).
• Ref. 9534: 1L MEET Video Board with Mifare proximity reader.
• Ref. 9543: S MEET flush-mounted box.
• Ref. 9519: S MEET surface box (Stainless steel).
• MIFARE Classic Reader (Ref. 9534): Compatible with 4-byte cards (Ref. 52740/52750).

Dimensions and Weight

• Product Dimensions: 118 x 183 x 49 mm.
• Weight: 0.804 kg.
• Packed dimensions: 8 x 25.5 x 16.5 cm.
• EAN 13: 8424299095349.
