Fermax

CORA video intercom kit with VEO monitor

CORA video intercom kit with VEO monitor

€795,00 EUR
€795,00 EUR
Sale Sold out
💡 Precio mostrado: PVP oficial FERMAX

¿Eres instalador? Crea tu cuenta profesional y accede al mejor precio del mercado para este producto, con soporte técnico especializado y condiciones de envío preferentes.

Preguntas frecuentes

¿Por qué veo PVP? Porque aún no iniciaste sesión con una cuenta profesional.

¿Cuándo veré mi precio PRO? Al validar tu cuenta de instalador; suele ser en menos de 24 h.

¿Qué obtengo como PRO? Tarifas con descuento, soporte experto y logística prioritaria.

The Fermax CORA Video Intercom Kit with VEO 9445 Monitor is designed to offer a complete solution for single-family homes seeking security, convenience, and modern design in their communication system.

This pack includes all the elements necessary for a practical and reliable installation:

  • CORA 7700 outdoor panel , robust, elegant and with a high-definition wide-angle camera.

  • Fermax 9445 monitor , with 4.3” TFT color screen, clear communication and intuitive operation.

  • CORA 7703 flush-mounted box , for discreet and professional installation.

  • Fermax 4825 power supply , which guarantees a stable power supply.

  • Fermax 9447 connector , which facilitates a fast and secure connection.

Thanks to Fermax's DUOX PLUS technology, this kit ensures simple installation with just two non-polarized wires, ideal for both new construction and renovations of existing systems . It also combines durability, minimalist aesthetics, and advanced connectivity , adapting to any type of home.

🔧 Technical Specifications

Fermax 9445 Monitor (VEO 4.3” DUOX PLUS)

  • Technology: DUOX PLUS (2-wire non-polarized digital).

  • Screen: 4.3” widescreen TFT (16:9).

  • Resolution: 480 × 272 px.

  • Finish: High strength textured ABS, UV protection.

  • Magnetic handset with automatic hanging.

  • Functions: call, conversation, door opening, call forwarding.

  • Automatic image on call, with shutdown after 90 seconds.

  • Maximum consumption in conversation: approx. 490 mA (24V).

  • Mounting: surface (requires connector 9447).

  • Optional: desktop support (ref. 9410).

  • Dimensions: 200 × 200 × 50 mm approx.

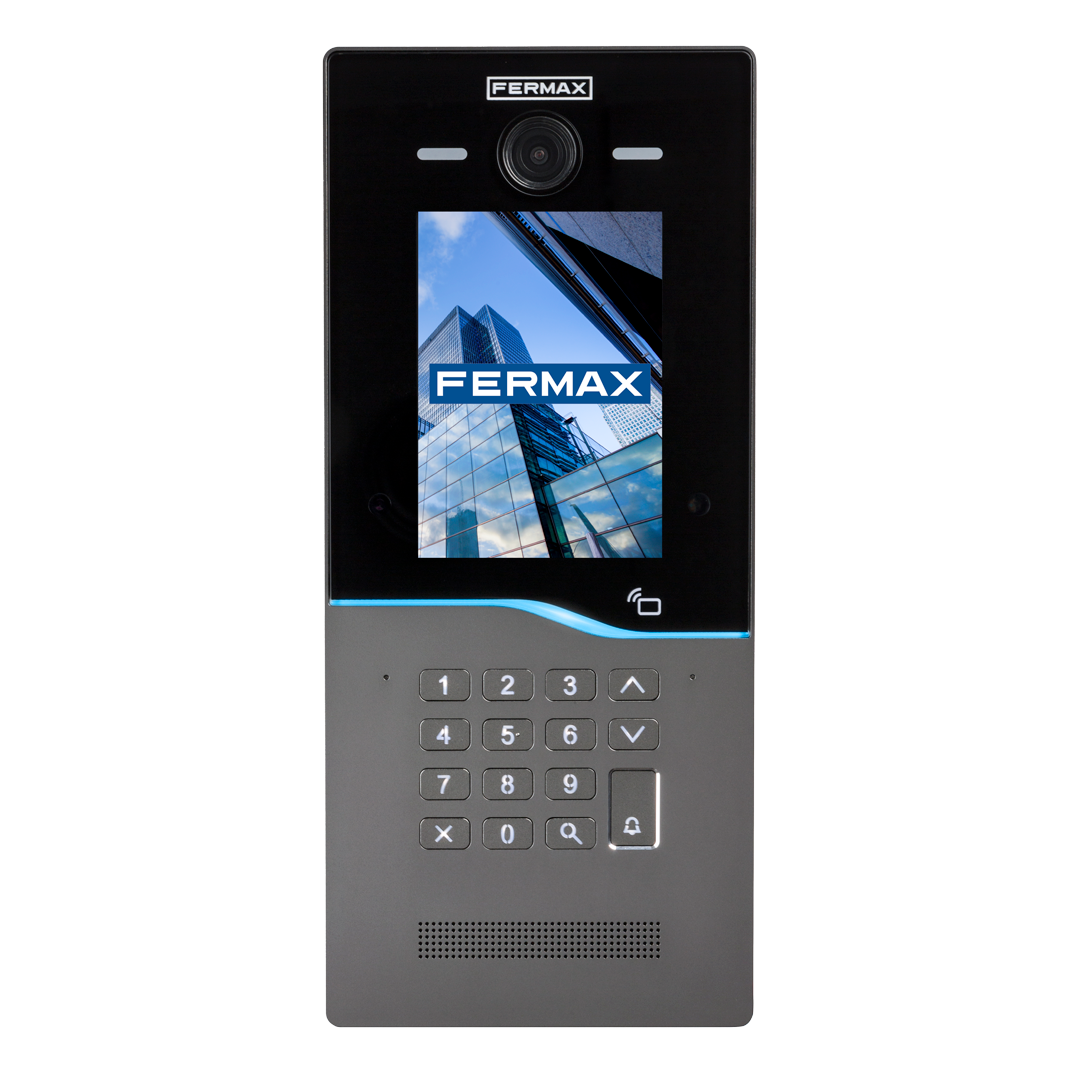

Fermax CORA / CORA CONNECT DUOX PLUS plate

  • Technology: DUOX PLUS (2 threads).

  • Protection index: IP65 (water/dust).

  • Mechanical resistance: IK08.

  • Camera: 1280 × 720 px resolution, color night vision with LEDs, angle 120º (H) × 80º (V).

  • Integrated display: 5” high brightness adjustable LCD.

  • Audio: CDS (Cora Dynamic Sound) system with speaker + 2 digital microphones.

  • Typical consumption:

    • Standby: 200 mA

    • Screen on: 260 mA

    • Call: 365 mA

    • Conversation: 490 mA

    • Call forwarding: 500 mA

  • Power supply: 24V DC non-polarized (DUOX bus).

  • Dimensions: 295.5 × 130 × 27.6 mm.

  • Weight: approx. 1.5 kg.

  • CORA CONNECT connectivity: Wi-Fi, web server management, digital directory, RFID/keypad access control, remote customization, online firmware updates.

Feeder 4825

  • DUOX Technology.

  • Dimensions: 90 × 175 × 60 mm.

  • Weight: approx. 0.53 kg.

CORA flush-mounted box

  • Dimensions: 280 × 115 × 45 mm.

  • Weight: approx. 0.45 kg.

Fermax 9447 connector

  • Quick connection system for DUOX PLUS.

View full details
